P&ID
Symbols Library v4.0
for DraftSight
Professional 2020 and newer
|
|
Features... |
- Contains 335 P&ID symbols in .dwg format
and 78 custom line types.
- Symbols conform to ISA
Standard 5.1-2009.
- Symbol legend sheets are
included.
- Works with metric and imperial drawing units.
- ANSI (A - F) and ISO
(A0 - A4) drawing borders included.
- All symbols can be
snapped to a grid for simple placement and
alignment.
- Many
symbols are dynamic blocks and can be modified
after they're inserted.
- Symbols
contain user defined attributes such as
manufacturer, model number, size, equipment
number, etc. This feature is useful for
running a data or attribute extraction to
create a bill of material when you've
completed your drawing.
- 30 day money-back guarantee.
|
User
friendly interface...
|
No
need
to browse through folders every time you need to
insert a symbol. Simply point and click in the
menu to choose from a wide range of ANSI/ISA
P&ID symbols. |
Choose one of two
ways to access the library... |

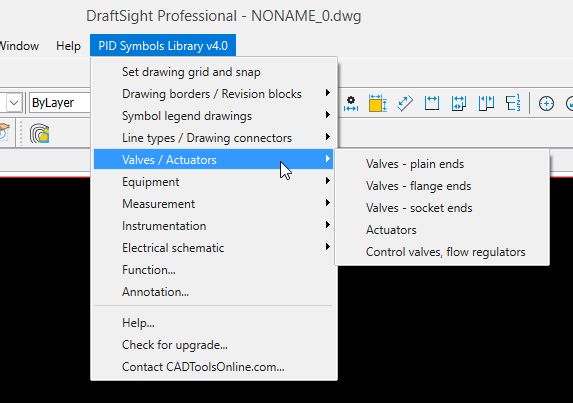

- Pull-down menu in DraftSight's menu bar:
|
|
|
- Add a new tab to the Ribbon:
|
|
|
After selecting a
symbol category, a window appears showing the
available ISA 5.1-2009 symbols. Click on a P&ID
symbol, then click OK to insert it in your drawing.
|
|
Pick an insertion
point in your drawing. Symbols will automatically
break the line when inserted.
|
A window will appear
ready for your input. The information you add here
is useful for running data extraction to create an
equipment list. |
How it works:
|
|
|
Most symbols can be
visually modified after they're inserted. Left-click
on the symbol to activate the dynamic features.
|
The blue circle grip will rotate the valve
and text.
The blue square grip moves the valve size
text to make room for an actuator.
|
|
|
For a complete list
of all symbols in this library, please download
this
brochure (PDF file).
|
|
About the blocks...
- All symbols are drawn for use with a grid.
Easily set the grid and snap in the library's
menu.
- Once inserted, the
symbols will take on the characteristics of
your current layer settings.
|
|
System
requirements...
- Compatible with DraftSight Professional 2020
and newer
- 143 megabytes of available space on your C:
drive is required
|
|
Try before you buy... |
The demo contains a small
sample of symbols and will function the same as the
full version. The ability to create a parts list and
the symbol legend sheets are not included in this
demo.
|
|
Pricing...
- Single user license - $149.00
- 2 to 8 user licenses - $129.00 each
- Unlimited user license - $2,000.00
|
|
Is this a good
deal? |
If you're looking for
a P&ID symbols library to speed up your CAD
department's productivity, consider this. If a CAD
operator making $25 per hour created this library
and spent an average of 15 minutes to draw each
symbol, that CAD operator would be paid $2,094 to
create just the symbols. That doesn't include the
custom line types and the menu system.
|
|
Ordering
options...
|
- Download
your
order immediately:
|
The number of licenses you
need equals the number of CAD workstations
where you need to install the library.
For 9 or more users, an unlimited user
license is available. Please contact
me to place an order.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
