P&ID Symbols Library v1.0 (ISO 10628)
for AutoCAD & AutoCAD LT

Features...
  • Compatible with AutoCAD & AutoCAD LT versions 2006 and newer.
  • Contains 332 P&ID symbols in .dwg format and 78 custom line types.
  • Symbols conform to International Standard ISO 10628.
  • ISO (A0, A1, A2, A3 & A4) drawing borders included.
  • All symbols can be snapped to a grid for simple placement and alignment.
  • Many symbols are dynamic blocks and can be modified after they're inserted.

  • Symbols contain user defined attributes such as manufacturer, model number, size, equipment number, etc. This feature is useful for running a data or attribute extraction to create a bill of material when you've completed your drawing.
  • 30 day money-back guarantee.

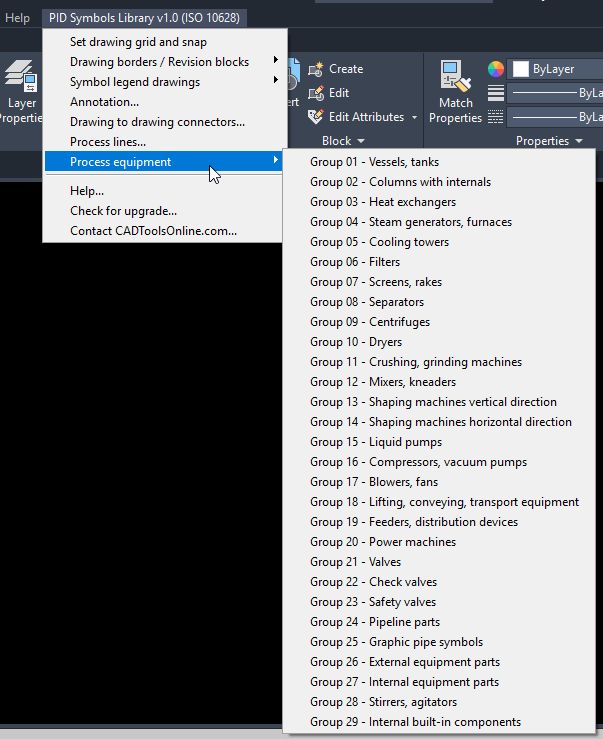

User friendly interface...
No need to browse through folders every time you need to insert a symbol. Simply point and click in the menu to choose from a wide range of ISO 10628 P&ID symbols.


How it works...
After picking a symbol from the menu and inserting it, a window will appear ready for your input. The information you add here is useful for running a data extraction to create an equipment list.


About the blocks...
  • All symbols are drawn for use with a grid. Easily set the grid and snap in the menu.

  • Once inserted, the symbols will take on the characteristics of your current layer settings.
System requirements...
  • Compatible with AutoCAD & AutoCAD LT 2006 and newer

  • 46 megabytes of available space on your C: drive is required
Try before you buy...
The demo contains a small sample of symbols and will function the same as the full version. Legend sheets and the ability to create a parts list is not included in this demo.
Pricing...
  • Single user license - $149.00

  • 2 to 8 user licenses - $129.00 each

  • Unlimited user license - $2,000.00
Is this a good deal?
If you're looking for a P&ID symbols library to speed up your CAD department's productivity, consider this. If a CAD operator making $25 per hour created this library and spent an average of 15 minutes to draw each symbol, that CAD operator would be paid $2,075 to create just the symbols. That doesn't include the custom line types and the menu system.
Ordering options...
  • Download your order immediately:

The number of licenses you need equals the number of CAD workstations where you need to install the library.

For 9 or more users,
an unlimited user license is available. Please contact me to place an order.

Choose your version of AutoCAD:
For full AutoCAD:
For AutoCAD LT:
