included with the "3D Piping Symbols Library v1.1"

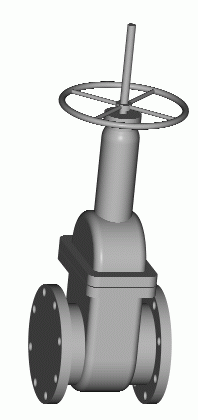

Gate Valve (Iron) Flanged ends Class 125 Sizes 2" through 24" |

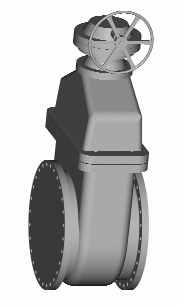

Wedge Gate Valve (Iron) Flanged ends Series 2500 Sizes 14" through 48" |

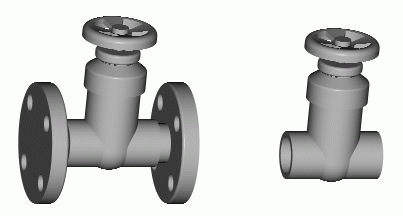

Gate Valve (PVC) Flanged ends - sizes 1/2" through 10" Socket ends - sizes 1/2" through 4" |

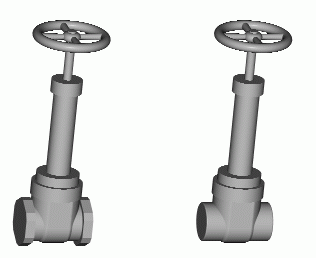

Gate Valve (Bronze) Threaded & socketweld ends Class 125 Sizes 1/4" through 3" |
Gate Valve (Steel) Flanged & buttweld ends Class 150, 300 & 600 Sizes 2" through 24" |
